SwiGO

SwiGO

Rs. 1,675.00
Rs. 1,755.00 Rs. 1,675.00
Sale Sold out
Shipping calculated at checkout.

Taxes included

Time Settings

45 in stock

Use code SWIGO200 at checkout for ₹200 OFF!

About this item

  • Can be connected up to 2 hp pumps directly without Starters or Contactors where pumps are operated by Switch, like Surface Monoblock pumps etc.
  • Can be connected to Submersible Motors single and 3 phase, 3 Phase dol pumps of any hp along with any Motor Starters such that SwiGO can control the Contactor or Starter coil circuit. Refer Circuit Diagrams in Image section for Installation process.
  • Heavy duty 40 amps relay.
  • Led Indication Of Operating Condition. off button for forced stop.
  • User friendly product which can be used by anyone (Age 12+) provided with Simple and easy Installations.

Features

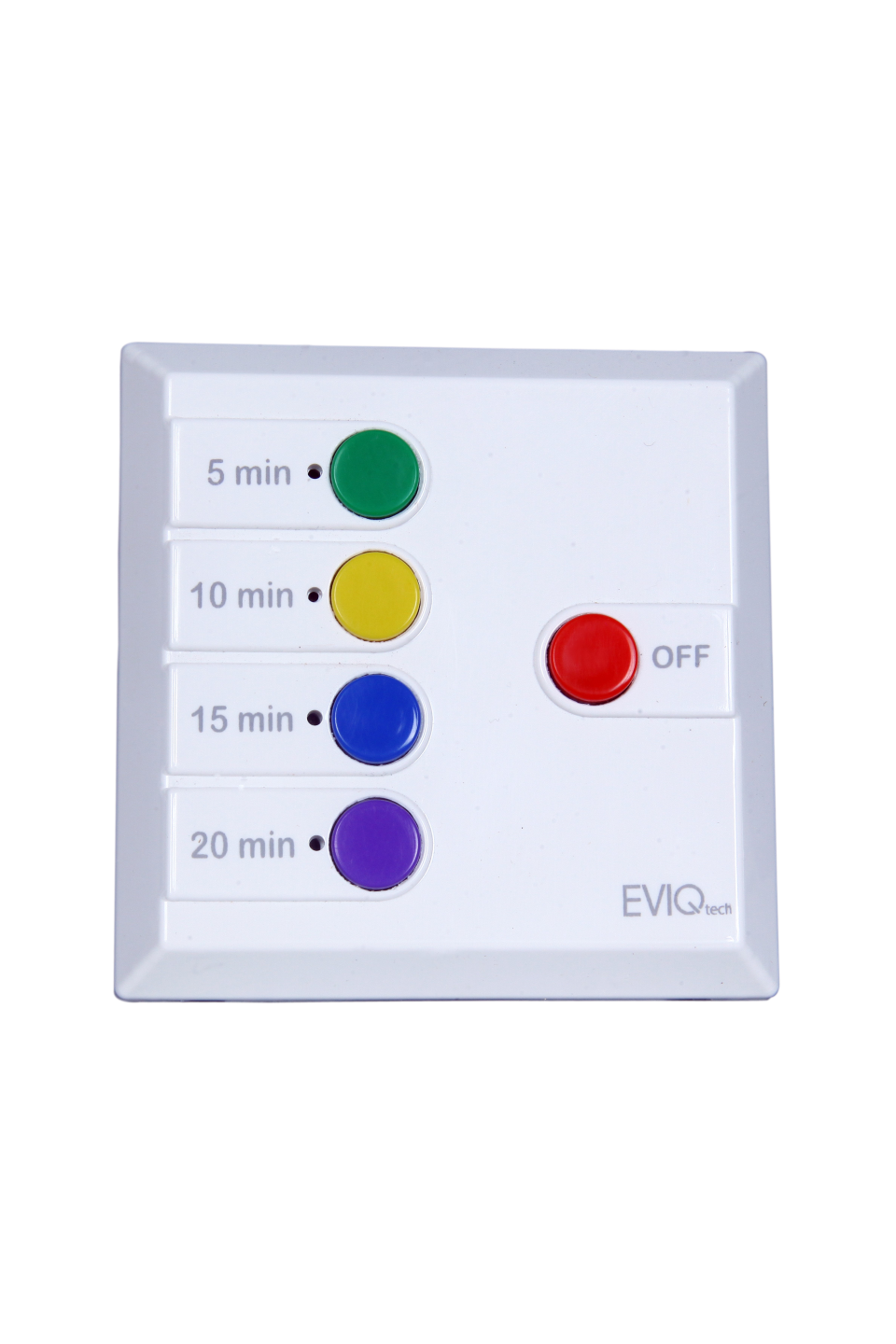

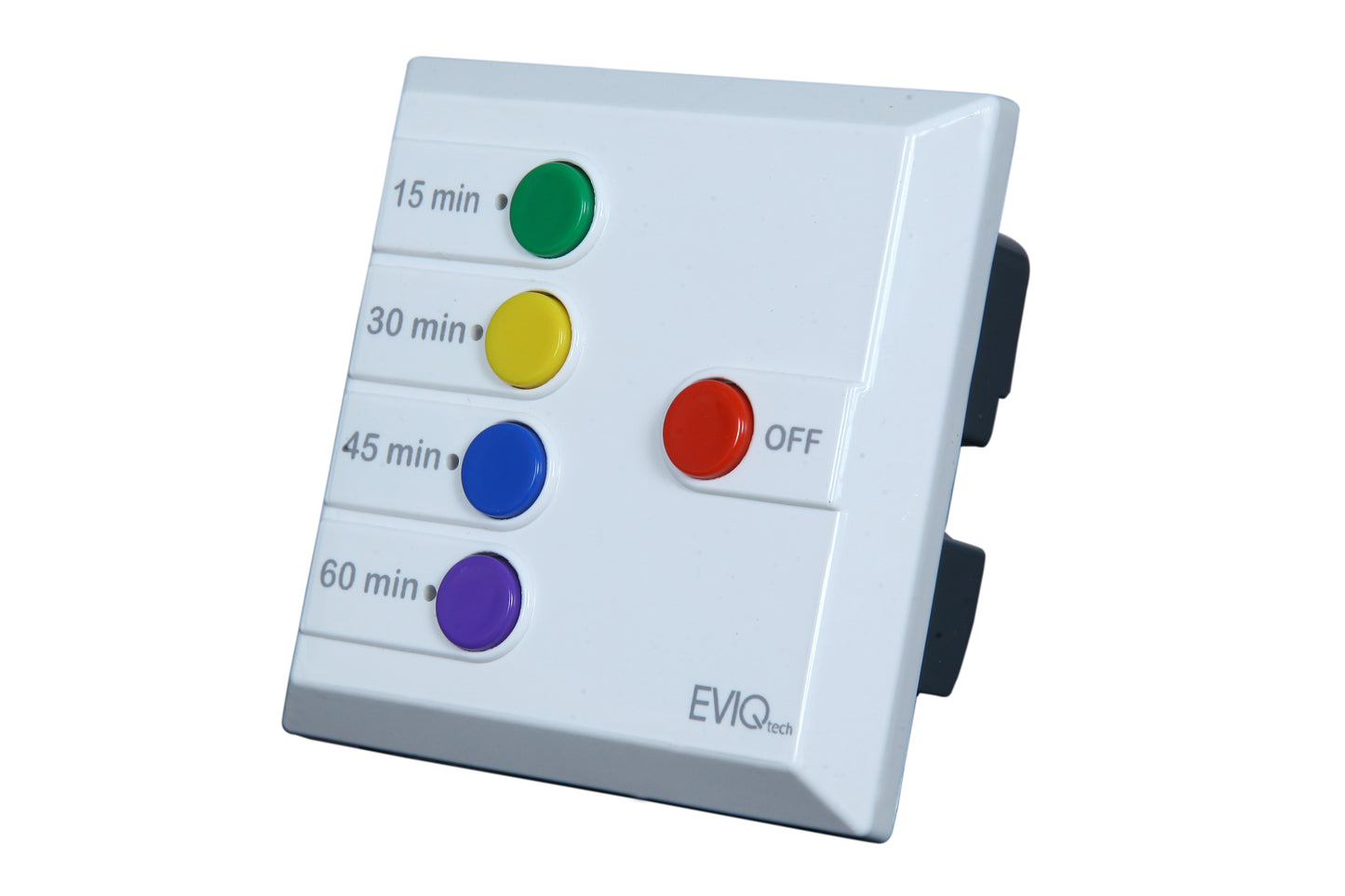

1. The FOUR COLOUR BUTTONS can be used to SWITCH-ON the Load. The load will remain ON for the time specified near the button.

2. The RED LIGHT INDICATION shows the the LOAD IS SWITCHED ON for the time specified near it.

3. The RED BUTTON is used to force stop the load in case of emergency or wrong selection of time.

4. Line and Neutral INPUT from supply.

5. Line and Neutral OUTPUT to load.

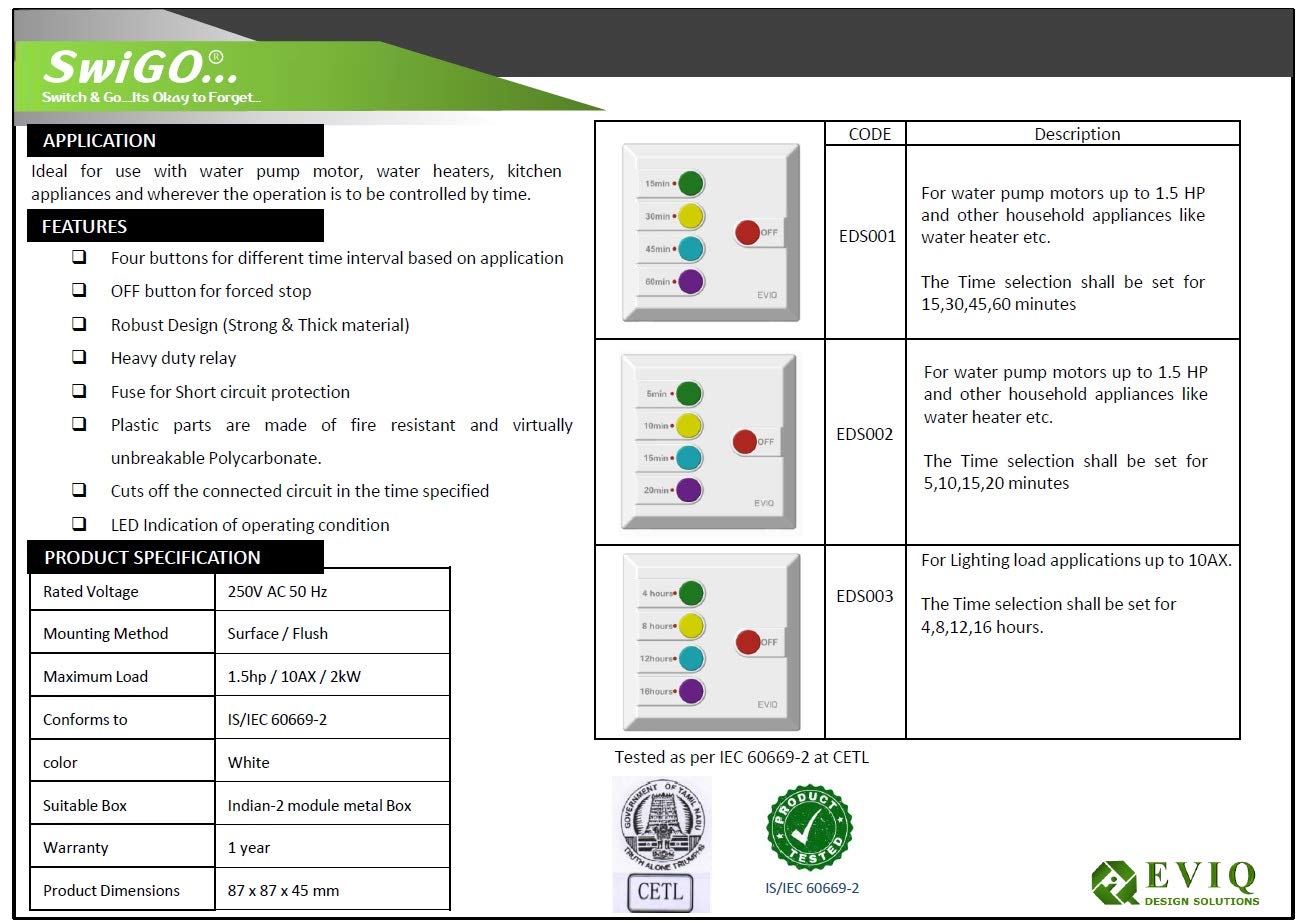

Specification

Rated Voltage: 250V AC 50Hz

Max Withstand Voltage: 440V AC

Cut-Off Voltage: >290V AC

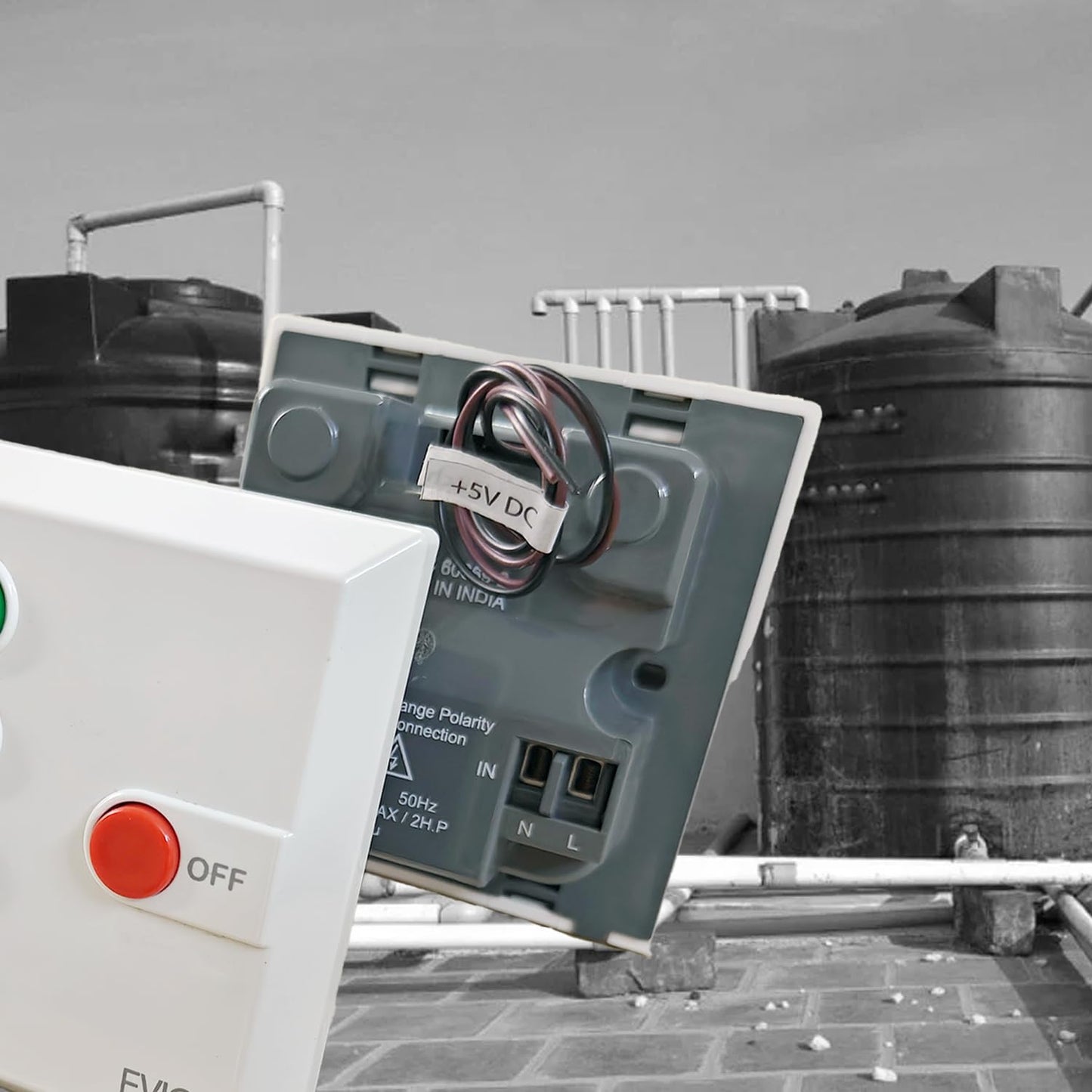

DC Output for Float Switch: 5V DC

Maximum Operating Current: 16AX / 2HP / 3kW

Mounting Method: Flush / Surface

Suitable Box: Indian – 2 module Box

Conforms to standard: IS/IEC 60669-2

Color: White

Warranty: 1 Year

Product Weight: 140gms

Product Dimensions: 87 x 87 x 45 mm

Leaflet

SwiGO Leaflet

View full details

Simple Interface

4 different time buttons and one stop button, OFF button for forced stop, that is it

Withstands High Voltages upto 440V AC

SwiGO can now withstand up to 440V AC. It will protect your connected Pumps, Motors, Geysers, Lights etc from High Voltages by switching off beyond 290V AC.

Worryless double tier protection from tank overflow

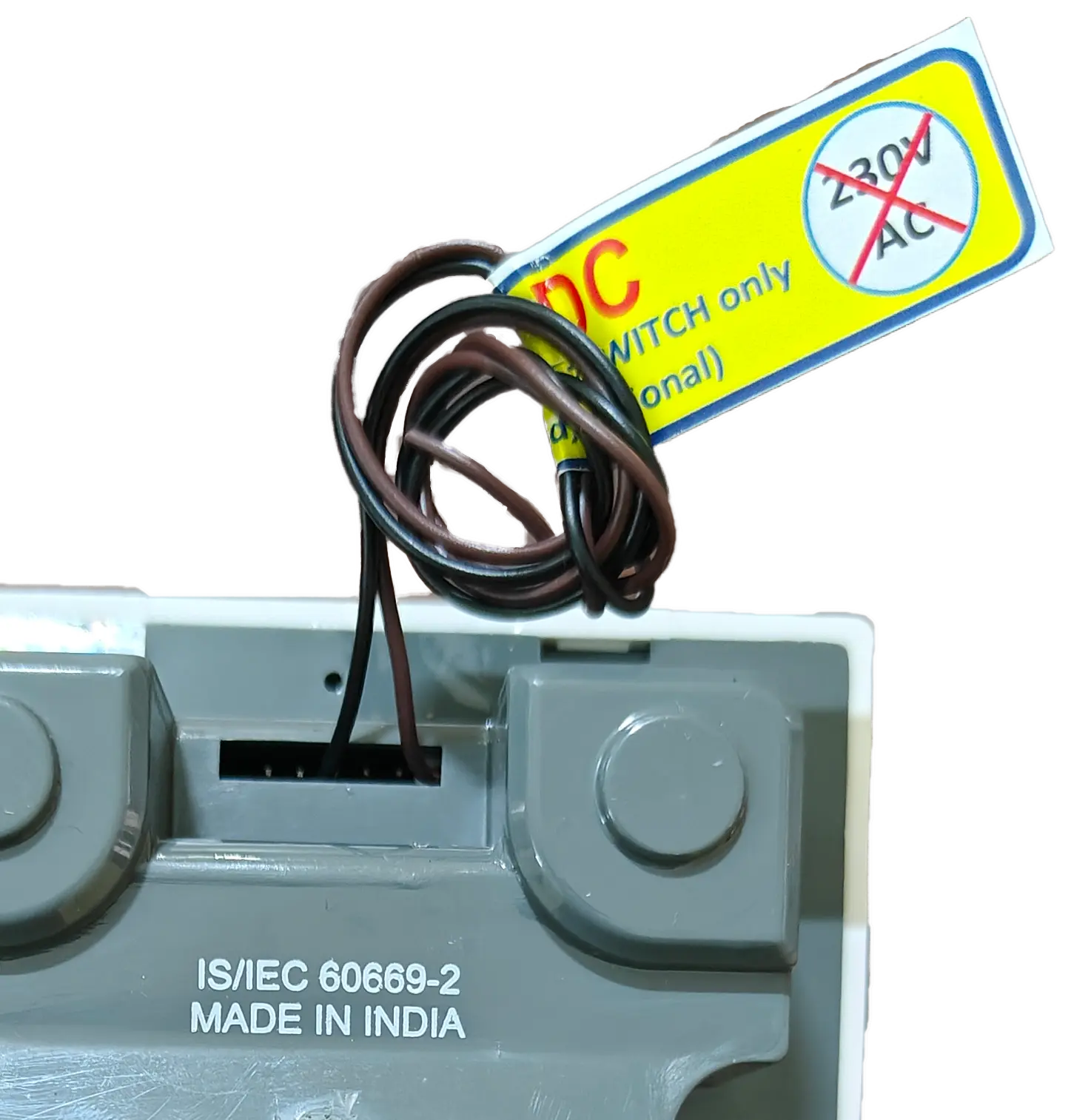

The SwiGO timer switch is all that require for daily pumping needs. If your needs vary or your tank needs to be full all the time, connect a float switch (not included) to SwiGO. It will detect and cut off if the tank is full or when the timer goes off, whichever happens first. This protects the pump should the float switch fail

Usage Guide

    1. The four colour buttons can be used to switch ON the load. The load will remain ON for the time specified near the button.
    2. The RED button is used to switch OFF the load in case of emergency or wrong selection of time.
    3. The Red light indication shows the load is switched ON for the time specified near it.
    4. Line and Neutral input from supply
    5. Line and Neutral output to load.
    6. Note: Wiring and installation instructions give along with the product.
