EVIQtech

SwiGO Modular

SwiGO Modular

Rs. 1,700.00
Rs. 1,700.00
Sale Sold out
Shipping calculated at checkout.

Taxes included

Time Settings

Low stock: 5 left

Modular SwiGO

USAGE:

Ideal for use with water pump motors, water heaters, lighting and other household appliances wherever the operation is to be controlled by time and where we frequently forget to switch OFF in time/after use.

Features

  • Four white buttons for different time interval based on application
  • Red colour OFF button for forced stop
  • Robust Design (Strong & Thick material)
  • Heavy duty relay
  • Plastic parts are made of fire resistant and virtually unbreakable Polycarbonate.
  • Cuts off the connected circuit in the time specified
  • LED Indication of operating condition

Specification

Rated Voltage: 250V AC 50Hz

Maximum Operating Current: 16AX / 2HP / 3kW

Suitable for: 2 module variant of Anchor / Roma / Brands with similar dimensions

Conforms to standard: IS/IEC 60669-2

Color: White

Warranty: 1 Year

Product Weight: 100gms

Product Dimensions: 51 x 48 x 54 mm

Leaflet

SwiGO Modular Leaflet

View full details

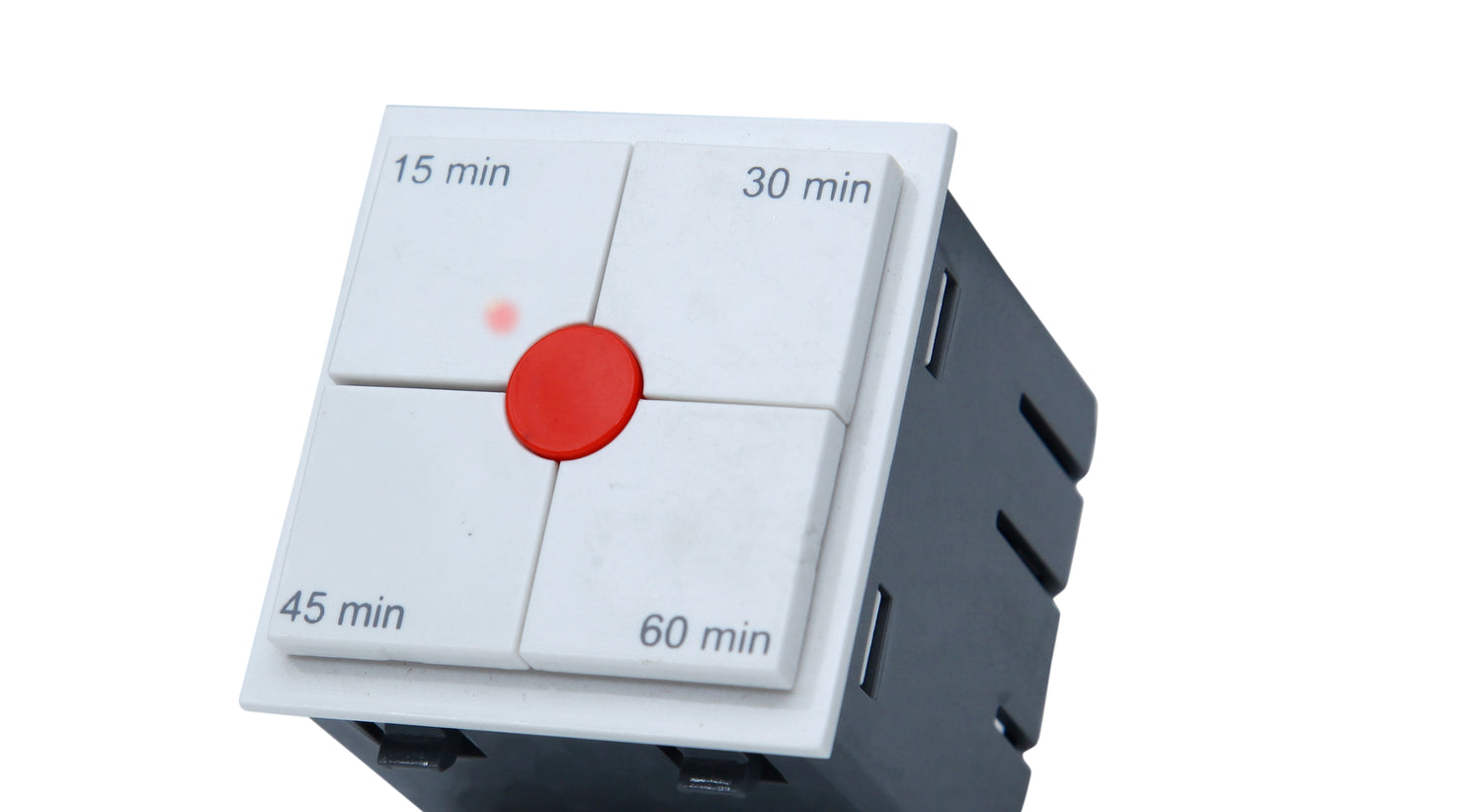

Simple Interface

4 different time buttons and one OFF button, that is it

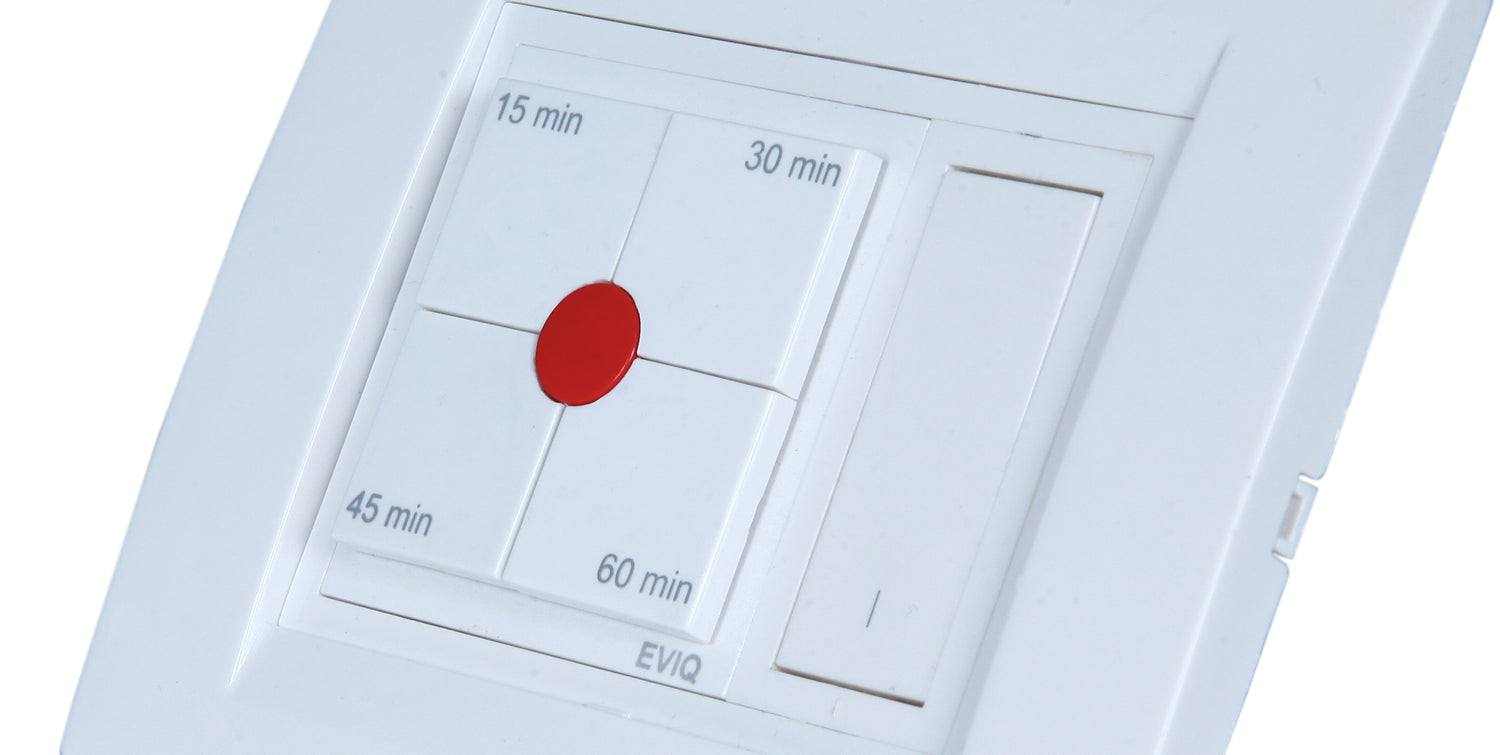

Fits in existing sockets

Fits in 2 module boxes

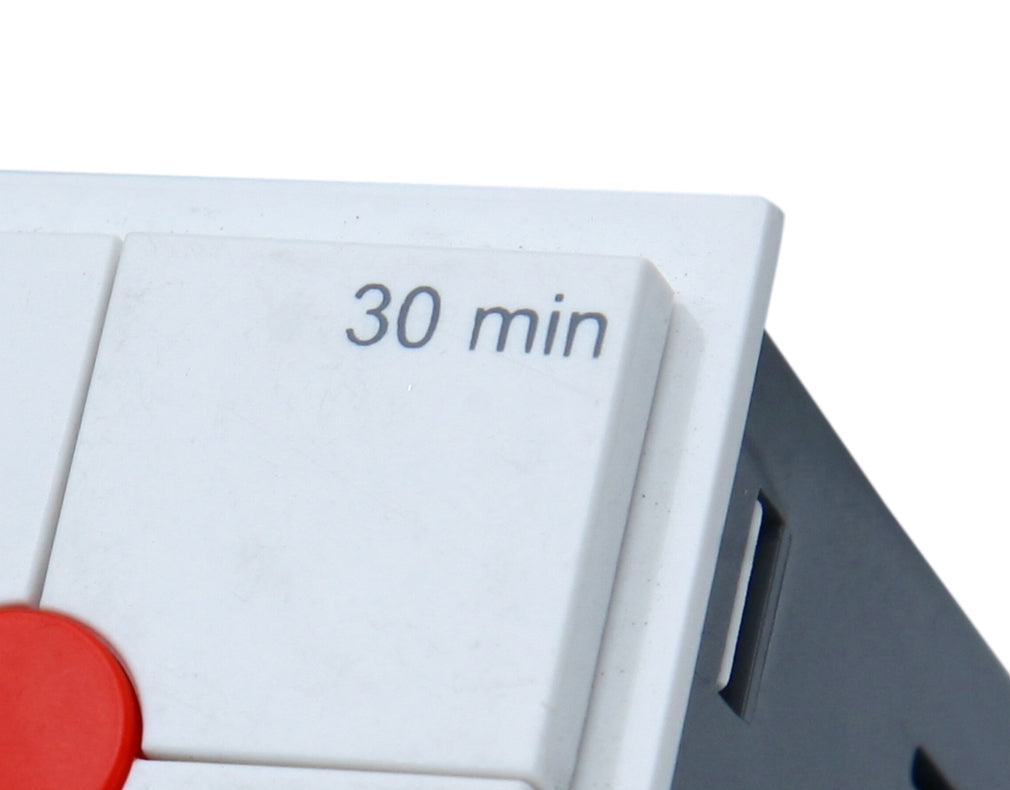

Robust build

Robust Material (Strong & Thick material) Plastic parts are made of fire resistant and virtually unbreakable Polycarbonate. Heavy duty relay

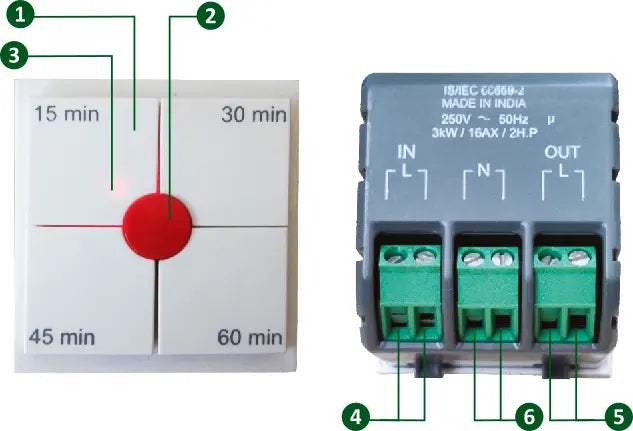

Usage Guide

    1. The four colour buttons can be used to switch ON the load. The load will remain ON for the time specified near the button.
    2. The RED button is used to switch OFF the load in case of emergency or wrong selection of time.
    3. The Red light indication shows the load is switched ON for the time specified near it.
    4. Line and Neutral input from supply
    5. Line and Neutral output to load.
    6. Note: Wiring and installation instructions give along with the product.

Tested at:
