EVIQtech

SwiGO Smart

SwiGO Smart

Rs. 2,200.00
Rs. 2,400.00 Rs. 2,200.00
Sale Sold out
Shipping calculated at checkout.

Taxes included

Time Settings

19 in stock

Use code SWIGO200 at checkout for ₹200 OFF!

About this item:

  • Smart Internet connected Timer Switches for Water Pumps, Submersible pumps, Heaters
  • Protect your devices from Overload, Dry run, Over Voltage etc
  • Timers for water motors may offer additional features like multiple daily or weekly schedules, countdown timers, or specific day selection options.
  • It allows users to program specific start and stop times for the water motor.

Features

  • For simple physical operation, 4 buttons with preset times are available.
  • For scheduling and smart features, there are limitless options in the Smart Life app.
  • Measures Current and Voltage used. Set ‘if’, ‘then’ conditions from app to start and stop. Use ‘if’, ‘and’ conditions to protect from Over Current and Dry Runs
  • A physical LED indicator blinks for whichever time mode is active

Specifications

Rated Voltage: 250V AC 50Hz

Maximum Operating Current: 16AX / 2HP / 3kW

Maximum Switching Voltage: 270V AC 50Hz

Cut-Off Voltage: <190V AC && >290V AC

DC Output for Float Switch: 5V DC

Mounting Method: Flush / Surface

Suitable for: Indian 2 module box

Conforms to standard: IS/IEC 60669-2

Color: White

Warranty: 1 Year

Product Weight: 140gms

Product Dimensions: 87 x 87 x 45 mm

Terminal Size: 2.5 square mm x 2

Usage

  1. Connect the device to your WiFi network via the Smart Life app on your phone.*
  2. After configuring the device, you are good to go and control the device from anywhere in the world. Indicator LED (4) blinks when smart functions are active

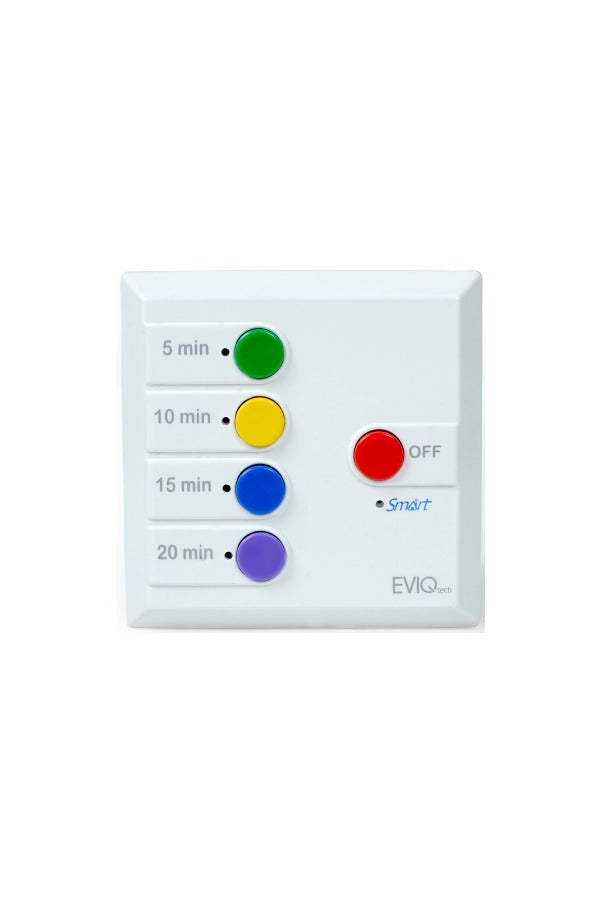

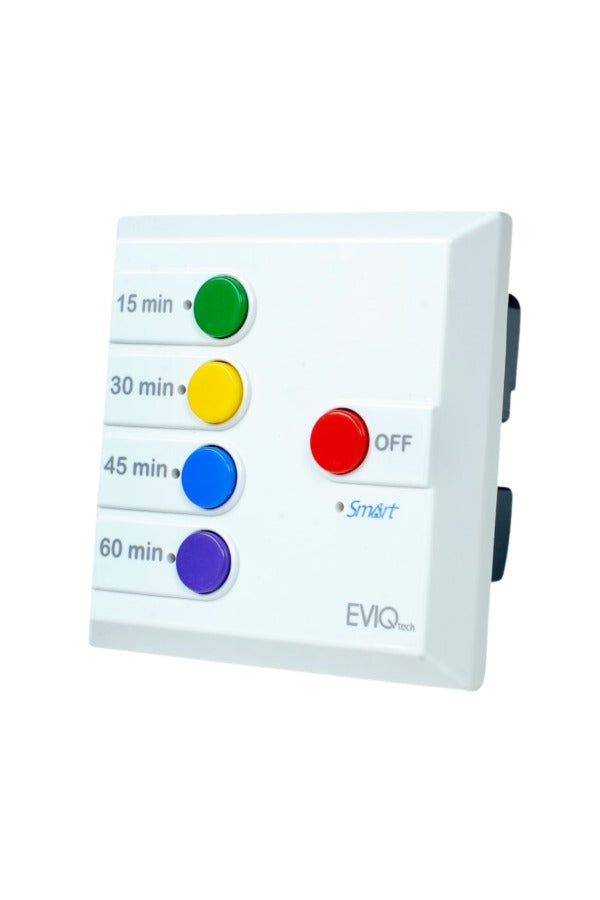

  3. It can be operated physically by using any of the 4 time buttons(1). An indicator light blinks when active(3).
  4. The stop button(2) can be used to immediately switch off.
  5. 5V DC output cable for Safe Float Switch (not supplied) connection. Once the Float Switch detects tank full, SwiGO Smart switches off & the 4LEDs blink in sequence for 5 times

Setting up SwiGO Smart

Setting up SwiGO Smart

SwiGO Smart Leaflet

SwiGO Smart Leaflet

View full details

Smart Switch for everybody.

You can teach everybody in your family, young and old to operate SwiGO Smart. They don't have to understand the internet or digital devices to operate this smart product.

  • Smart. Internet Connected

    Control from wherever you are.

    Have Schedules that start everyday at the same time or once a week. Anything.

  • Simple. Everybody can use it

    The physical button allows everybody to operate. It is not just a digital switch.

  • Safe. Set voltage and current protections

    SwiGO Smart protects equipment from: Overload, Dry run, High Voltage, Low Voltage by allowing you to set an operation range on the Smart Life app.

  • Convenient. Set unlimited scheduling options

    Set on the Smart Life app

  • Monitor. Control energy usage

    Know the power consumption of your appliances and make wise choices.

  • Everything. Use with pumps, lighting, etc

    Need your water pumps, compound lighting or shop-banners to switch on and off at the right time. Use with anything that periodically runs and needs to be switched off at the right time.

Withstands High Voltages upto 440V AC

SwiGO Smart can now withstand up to 440V AC. It will protect your connected Pumps, Motors, Geysers, Lights etc from High Voltages by switching off beyond 290V AC.

Worryless double tier protection from tank overflow

The SwiGO Smart timer switch is all that require for daily pumping needs. If your needs vary or your tank needs to be full all the time, connect a float switch (not included) to SwiGO Smart. It will detect and cut off if the tank is full or when the timer goes off, whichever happens first. This protects the pump should the float switch fail.

Control your pumps, heaters with voice assistants

The Smart life app now allows you to control your devices via voice control. Works with Alexa, Google Assistant and Siri. Say, "Start my motor!

Try saying these commands:

  • "Hey Siri, start my home pump"
  • "Ok Google, run my room heater"
  • "Hey Alexa, switch off my home lighting"
  • "Hey Google, switch off all appliances"

For use with submersible pumps

Use along with SwiGO Self Starter if you want to automate Submersible Pumps

For Single Phase Submersible pumps, it automates the Motor Starter, without a need to push the Green Start Button. It works with leading brands of Motor Starters. Buy separately on Amazon.

SwiGO Smart: How to Install and Configure

Using Swigo Smart with Self Starter

Usage Guide

    1. Connect the device to your WiFi network via the Smart Life app on your phone.*
    2. After configuring the device, you are good to go and control the device from anywhere in the world. Indicator LED (4) blinks when smart functions are active
    3. It can be operated physically by using any of the 4 time buttons(1). An indicator light blinks when active(3).
    4. The stop button(2) can be used to immediately switch off.
    5. 5V DC output cable for Safe Float Switch (not supplied) connection. Once the Float Switch detects tank full, SwiGO Smart switches off & the 4LEDs blink in sequence for 5 times
