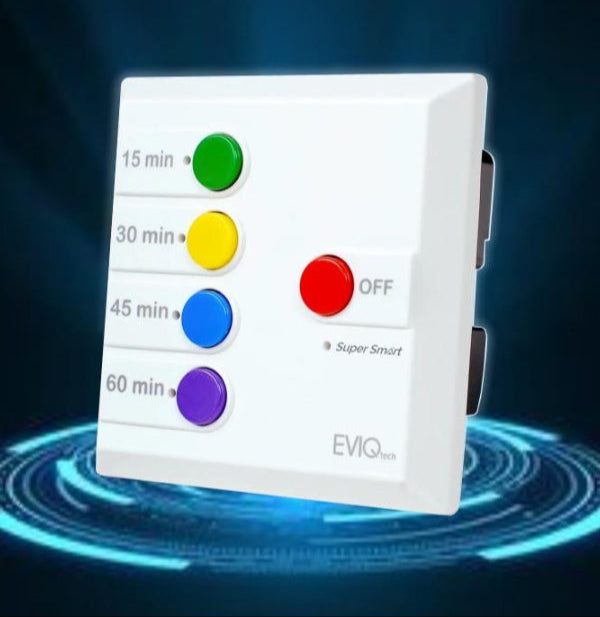

SwiGO SuperSmart

SwiGO SuperSmart

Regular price Rs. 3,400.00
Regular price Rs. 3,500.00 Sale price Rs. 3,400.00
Sale Sold out
Shipping calculated at checkout.

Taxes included

Time Settings

Low stock: 10 left

Use code SWIGO200 at checkout for ₹200 OFF!

Features

  • All features work locally on the SwiGO SuperSmart without requiring any internet/cloud
  • A Smart, Intelligent switch to safely control and monitor your Pumps (1&3 Phase), Lights, Heaters, any machines
  • Has Power monitoring feature: Measures Voltage, Current, Power and Energy
  • Just not Control and Monitor, also Protects all your connected devices from Overload, Over Voltage, Under Voltage, Dry-run
  • Create daily and Weekly schedules to run
  • Can choose to switch on automatically after power resumption or stay off
  • Protect from sudden switching spikes and surges
  • Withstands 440V AC but cuts off output beyond 290V AC
  • Can be connected directly up to 2 HP Submersible- Single Phase/4500W-Heaters/20AX; can be used with Single Phase Starter up to 2HP or 3 Phase DOL/Star-Delta starter up to 30HP
  • Current measurement via shunt up to 20A; through a CT up to40A

Specification

Rated Voltage: 250V AC 50Hz

Maximum Switching Voltage: 290V AC

Maximum Withstand Voltage: 440V AC

Maximum Operating Current(Built-in): 20A / 3HP / 5kW

Maximum Operating Current(with external CT): 40A / 30HP Three phase

Cut-Off Voltage: <170V AC && >290V AC

DC Output for Float Switch: 5V DC

Mounting Method: Flush / Surface

Suitable for: Indian 2 module box

Conforms to standard: IS/IEC 60669-2

Color: White

Warranty: 1 Year

Product Weight: 225gms

Product Dimensions: 87 x 87 x 45 mm

Terminal Size: 2.5 square mm x 2

Setting the device up first time?

SwiGO SuperSmart Leaflet

View full details
  • Robust Design & Safety

    Built with a sturdy structure and clear labeling, it ensures safe operation and reliability.

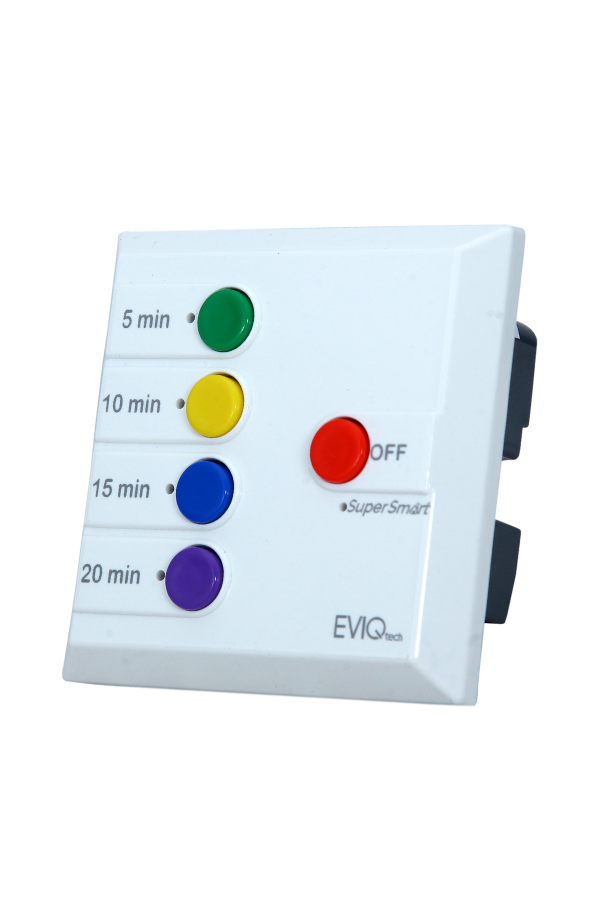

  • Simple Manual Operations

    Color-coded physical buttons make local control intuitive and easy. Even without the app, you can manage operations directly.

  • Built-in Protection, Built-in Savings

    SwiGO SuperSmart protects equipment from: Overload, Dry run, High Voltage, Low Voltage and reduce maintenance costs saving money while protecting your equipment.

  • Convenient. Set unlimited scheduling options

    Its Schedule setup provides effortless control and flexibility.

  • Monitor. Control energy usage

    Stay in control with real-time energy tracking.

Offline Simplicity - Powered by Precision

No Wi-Fi? No problem. SwiGO SuperSmart operates completely offline through schedules and protection parameters stored in the device. Dedicated buttons gives added convenience for any out of schedule use.


Withstands High Voltages upto 440V AC

SwiGO SuperSmart can now withstand up to 440V AC. It will protect your connected Pumps, Motors, Geysers, Lights etc from High Voltages by switching off beyond 290V AC.

One Switch, Multiple Timed Solutions

From motor pumps to water heaters and lighting systems, SwiGO SuperSmart simplifies timed control with just a press.

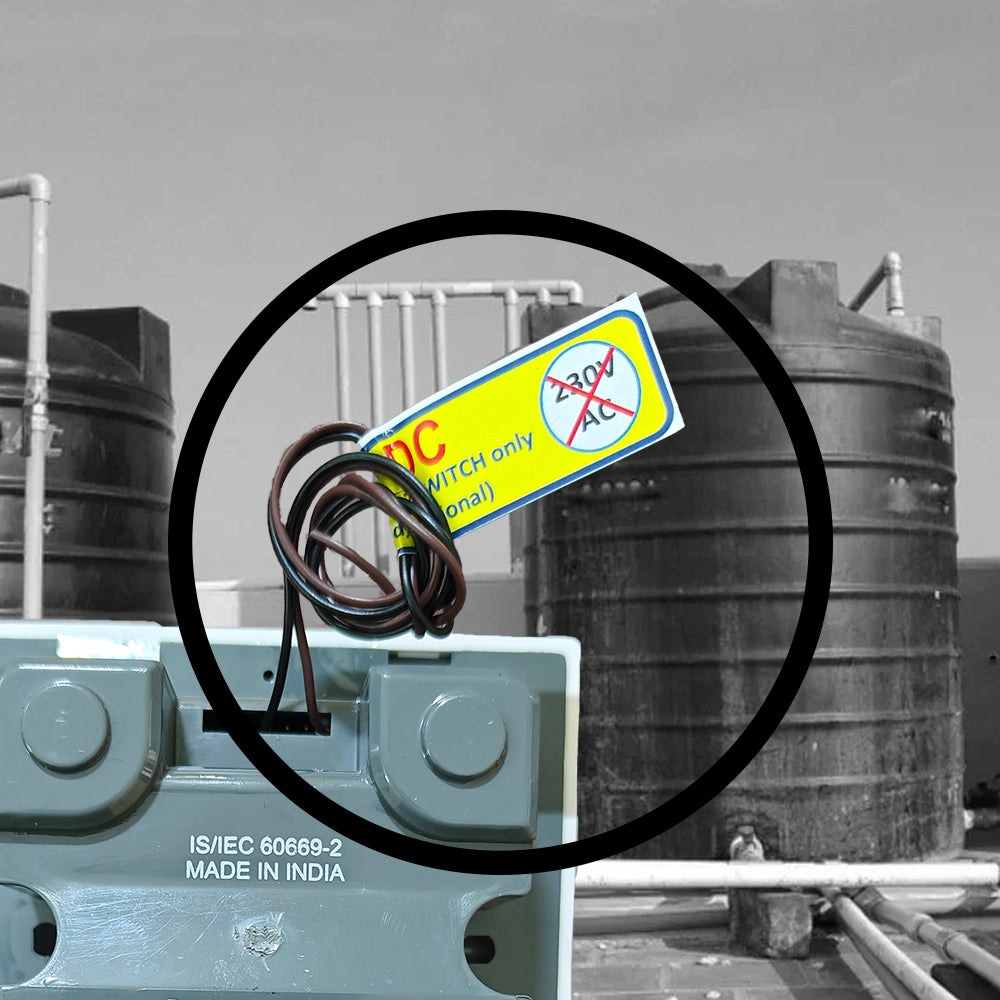

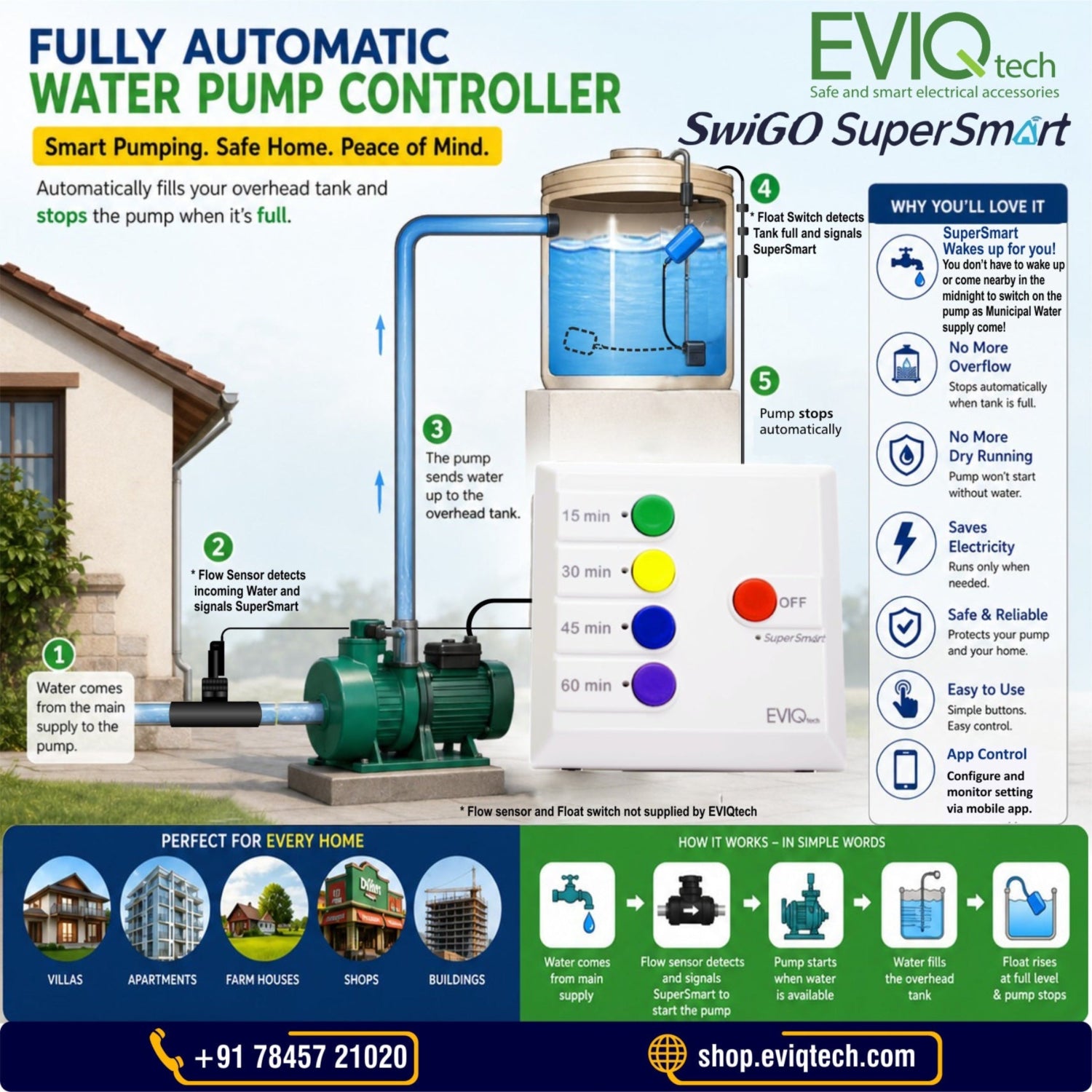

Worryless double tier protection from tank overflow

The SwiGO SuperSmart timer switch is all that require for daily pumping needs. If your needs vary or your tank needs to be full all the time, connect a float switch (not included) to SwiGO SuperSmart. It will detect and cut off if the tank is full or when the timer goes off, whichever happens first.

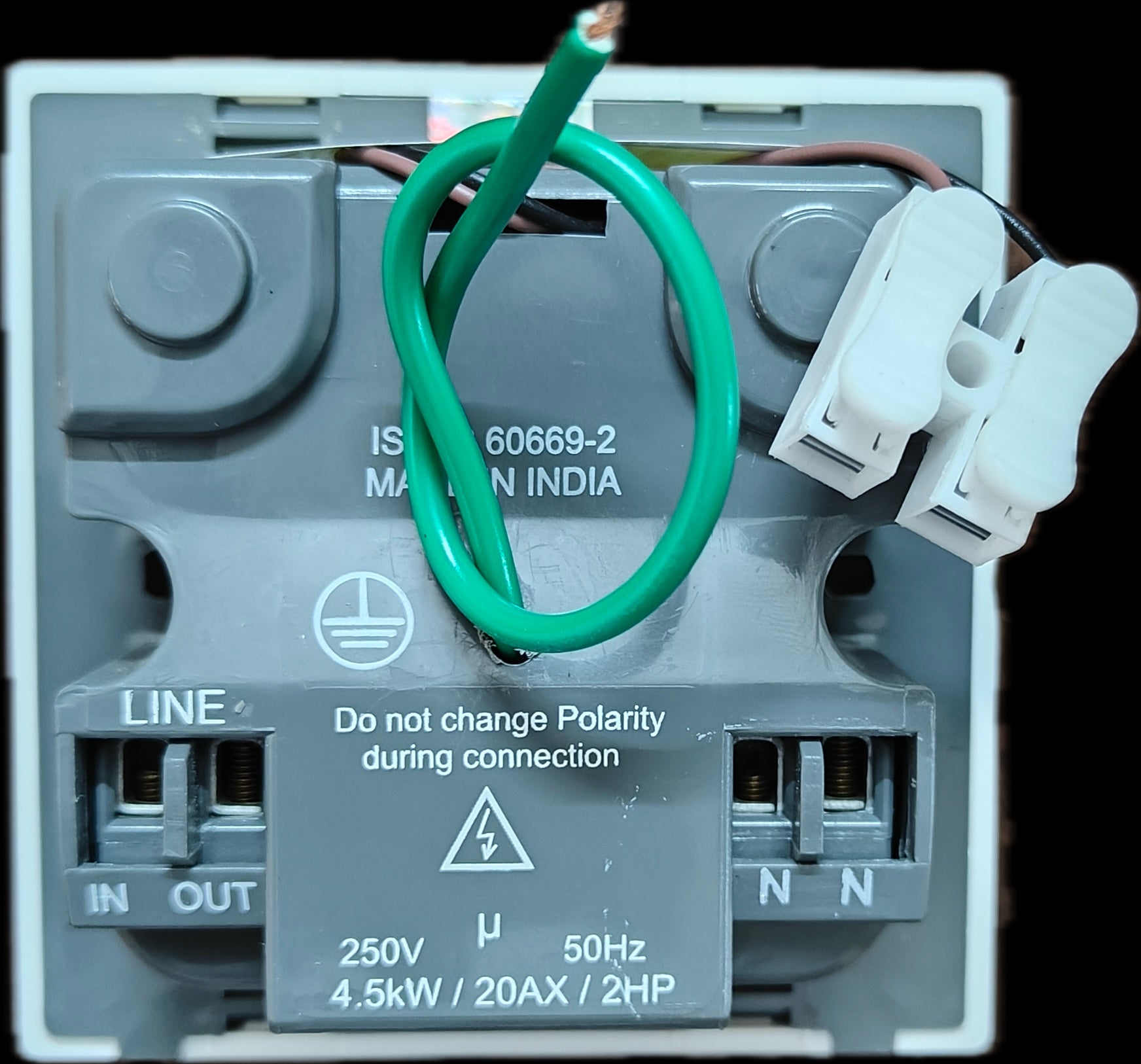

SwiGO SuperSmart | How to Connect?

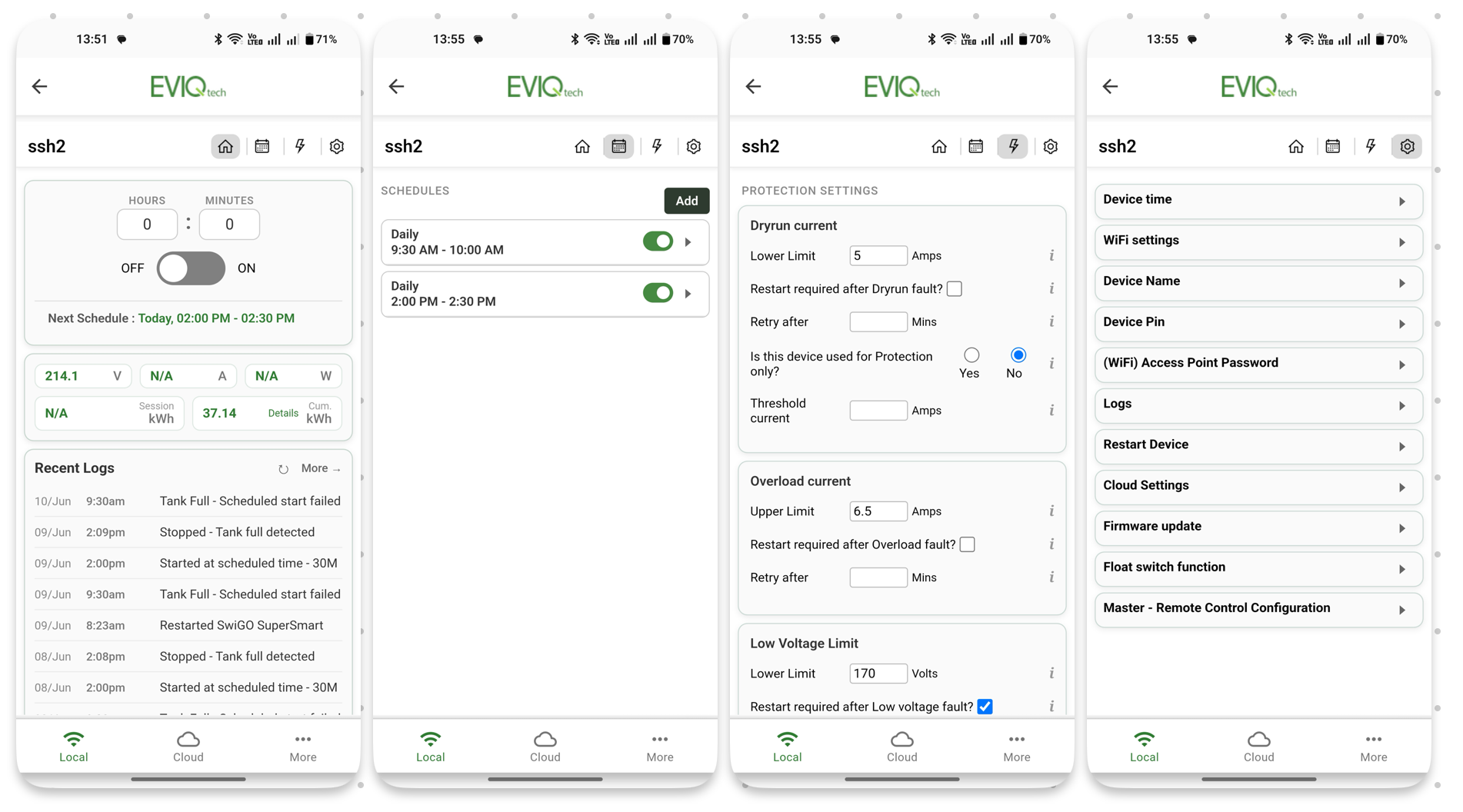

SwiGO SuperSmart | Web App Setup

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
SINGARAVELU MUTHIAN
Really smart!

I have bought SwiGo Supersmart and installed it for our motor switch in our apartment. I have scheduled automatic start and stop for our motor and it is working perfectly. It also protects the motor by automatically switching of the motor if no water in the underground sump. With additional float purchased (separately) it also deducts and stops the motor when the overhead tank is full. The user interface in the mobile application is very friendly and gives us accurate information about the motor usages. It is value for money. The switch looks elegant and works really smart.

G
Gobinathan S
Saved my pump from High Voltage at midnight hours!! This one feature alone returned the device cost!

I was very impressed with the SwiGO SuperSmart timer for the pump.
It not only provides precise timing control but also provides Excellent protection for my pump against Overload, Dry run, High voltage ,Under voltage fluctuations. This features protects my pump from potential damages.

Y
Y S GEETHA

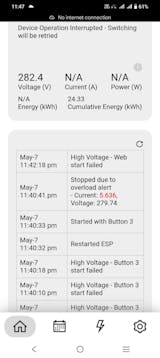

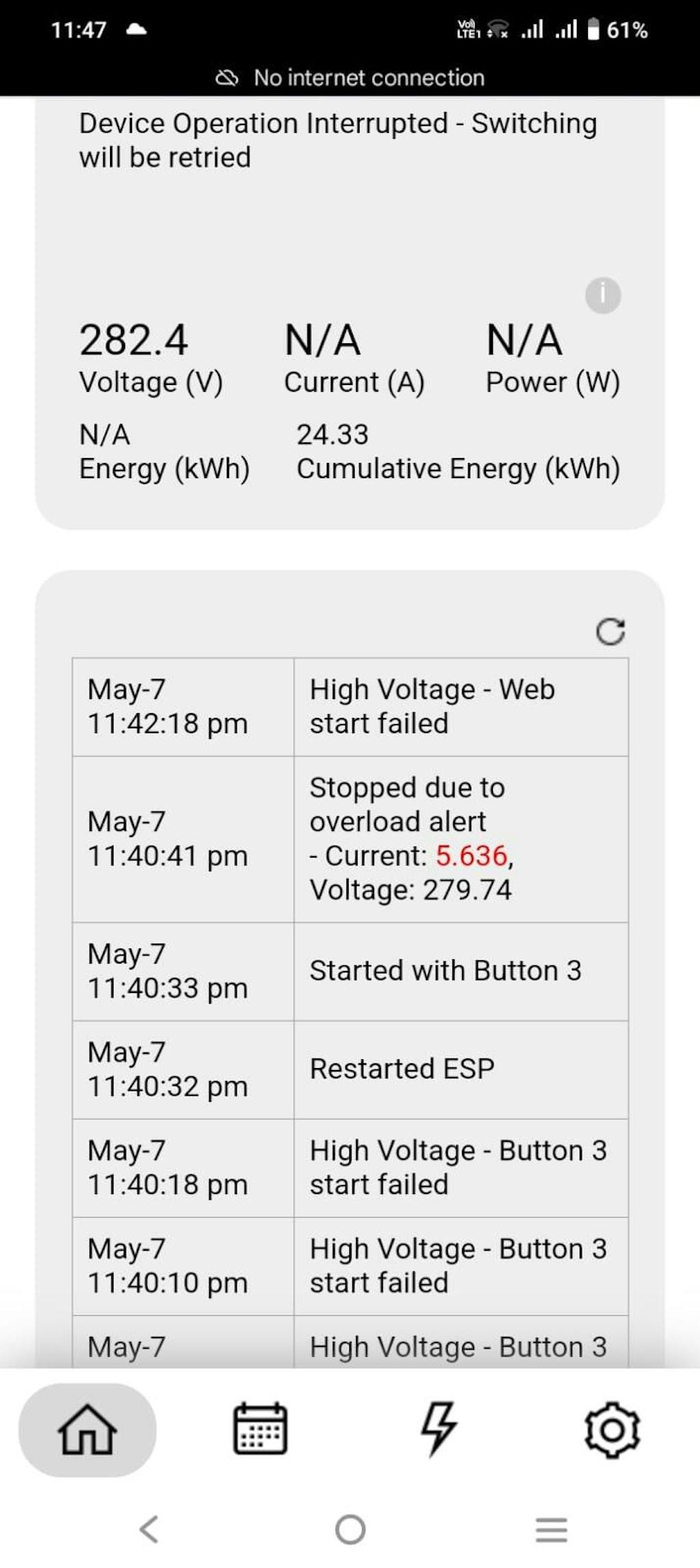

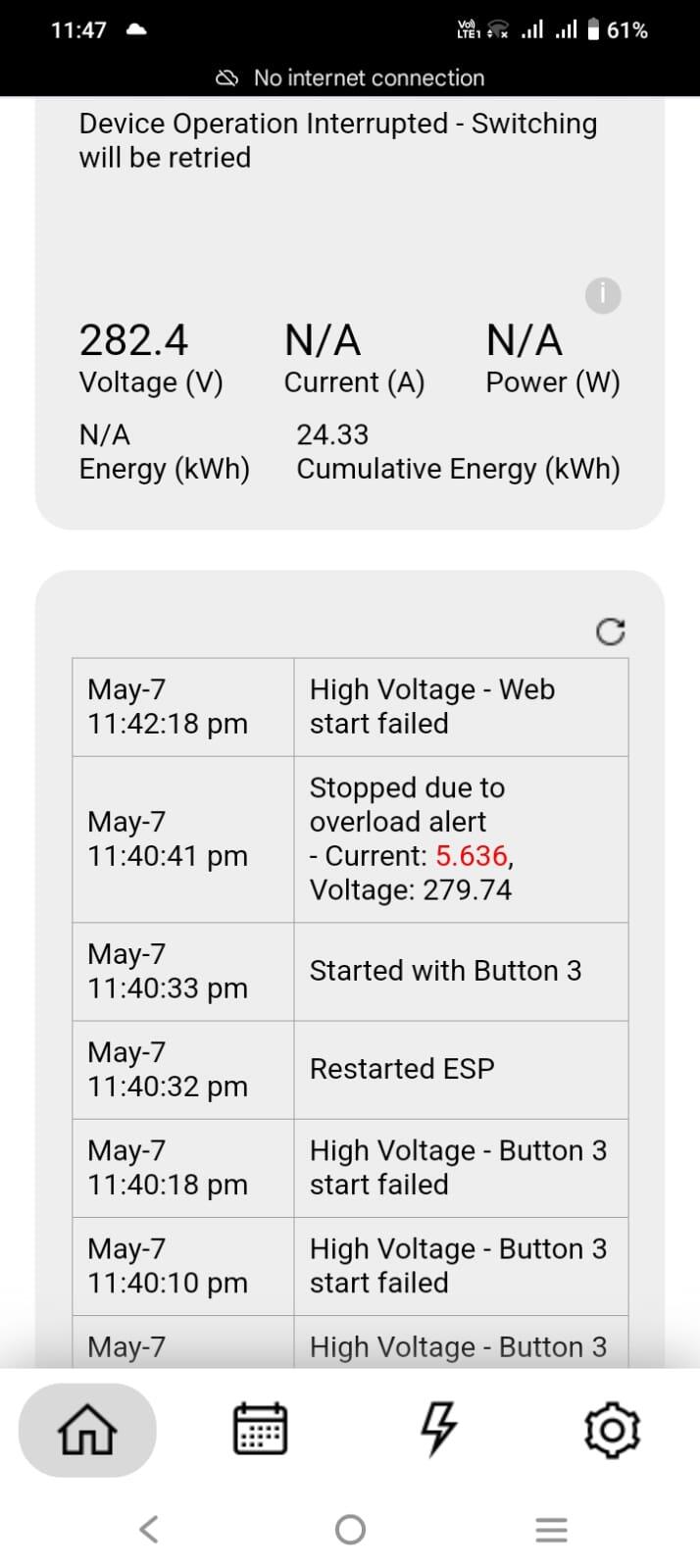

Great relief from internet cost. Trip after dry run is so quick in 4 secs. Logs showing at each event of trip what is the voltage and current. Good for fault diagnostic purpose

M
Mohana Sivaraj
Quite a faster operation

Superior build quality! Easy to understand App! Experienced Set it and forget it
Quite a faster operation
